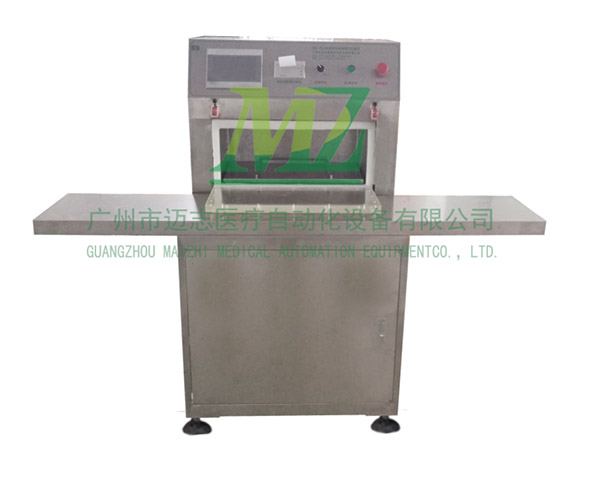

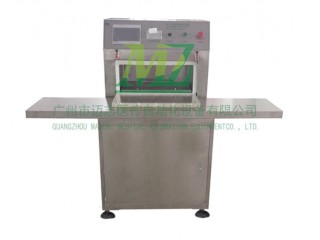

廣州邁志mym09真空采血管自動抽真空壓帽機

設備產能

Equipment capacity

10000-12000支/小時

10000-12000 pcs/h

整機功率

Overall power

1.5kw  380v 50HZ

真空度

Vacuum degree

0-0.095Mpa/cm³，真空度誤差±10%

0-0.095Mpa/cm³, error of vacuum degree ±10%

試管規格

Test tube specification

Ø8管Ø13管（13*75  13*100通用）Ø16管（夾具不通用）

Tube Ø8 Ø13 (universal for 13*75  13*100), Ø16 (non-universal for fixtures)

耗氣量

Gas consumption

≤0.5m³/min，氣源壓力：0.5Mpa≤p≤0.8Mpa

≤0.5m³/min, air source pressure: 0.5Mpa≤p≤0.8Mpa

整機外形尺寸

Overall boundary dimension

1500mm*800mm*1400mm

整機重量

Overall weight

220kg
